Our Products

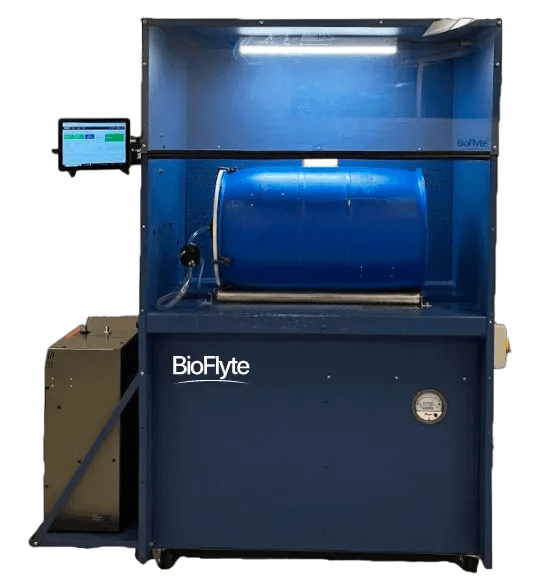

BioFlyte z200

Detection System for Critical Infrastructure Protection

The BioFlyte z200 comprehensive opioid and bio-aerosol detection system is intended for continuous operation in critical infrastructure, operating unattended for months at a time. The system includes a UV LIF trigger sensor and a MALDI time-of-flight mass spectrometer for threat identification. Once triggered, the autonomous threat identification process proceeds, which includes aerosol sampling, sample preparation, sample analysis and data analysis. Where possible, the BioFlyte z200 is configured to communicate with the building management system to protect unexposed sections of the building by actively controlling the ventilation system. The system automatically resets itself for the next trigger, and is designed for rapid integration into third-party command and control systems and architectures.

A forensics sample can be collected as a laboratory reference sample using an (optional) fully-integrated dry filter unit. The sampler is activated when the trigger signal is received.

Features

  • MALDI time-of-flight mass spectrometer for bio-threat and opioid identification
  • Continuously monitors the air for aerosol threats
  • Supports active control of the ventilation system
  • Inexpensive to operate: no bio-molecular reagents
  • Fully autonomous, unattended operation: minimal resource requirements
  • Optional forensics sample collection

Key Specs

  • Agent identification in 5 minutes from trigger/alarm signal (includes sample collection time)
  • Detects all classes of bio-agents
  • New threats inexpensively added to threat list via library update
  • Excellent sensitivity: 100 threat particles per liter of air
  • Specificity: species or compound

Specifications

Sensitivity:
100 threat particles per liter of ambient air

Specificity:
Species level for bio-threats, compound specific for opioids

Detection Time:
5 minutes (from trigger to identification)

Maintenance interval:
3 months (but may be adjusted for local ambient conditions)

Consumables for each assay:
none

Power:
Input Power AC Voltage: 110-220Vac
Input Power DC Voltage: 24Vdc (optional)
Power Consumption: 100 W (nominal)

Size and Weight:
Width: 55 cm
Height: 60 cm
Depth: 75 cm
Weight: 35 kg

Trigger Sensor Air Sampling Flow Rate:
3 liters per minute

Identifier Air Sampling Flow Rate:
30 liters per minute

Forensics Air Sampler Flow Rate:
200 lpm (optional)

Environmental:
Intended for indoor applications

Humidity:
5 – 95% (non-condensing)

BioCapture® z750

Handheld Air Sampler

The BioCapture® z750 was created to provide CBRN Defense Forces and Emergency Response Teams with a high-performance handheld sampler. The BioCapture® z750 is designed around a proven Dry Filter Unit (DFU) technology that has been in use worldwide for decades. The electret filter design incorporated into the z750 has extensively validated sample extraction protocols, and is compatible with PCR, immunoassay, and fieldable mass spec instruments, as well as analytical methods associated with laboratory confirmation.

The BioCapture® z750 retains many of the key features of previous hand held collectors, such as ease of operation in Level A suits, elimination of sample carryover and ability to field decontaminate. For multiple tests in the hot zone, simply lift up the cover, insert a new filter cartridge, close the cover and start the sample collection.

A new feature incorporated into the BioCaputure® z750 is an option to sample at the instrument’s maximum possible flow rate of 500 lpm. When set to Max Flow Mode, ambient air is sampled at 500 lpm for a period of 5 minutes. Using this mode, an operator can maximize the concentration factor of a sample in an event with the potential for airborne biological agents. This new feature, not available in previous BioCapture® models, allows the first responder to optimize the initial response by collecting a maximum sample concentration in the shortest amount of time.

Features

  • Disposable sampling filter prevents sample-to-sample carryover.
  • One button operation (on/off)
  • Status and battery level indicator LED
  • Integrated flow sensor assures consistent flow at the specification
  • Low operational cost
  • NEW: Max Flow Mode allows for a 5 minute sample at 500 lpm

Key Specs

  • 200 liters per minute flow rate
  • Weighs less than 8 pounds (<4 kg)
  • Up to 3 hours of run time per battery charge
  • Selectable sample time in 5 minute increments from 5 to 30 minutes

NEW: BioCapture® z750

Flow Rate:
200 lpm

Max Flow Mode:
500 lpm

Battery Life:
8 hours

User Selected Sampling Times:
Yes; 5, 10, 15, 20, 25, 30 minutes

Max Flow Mode Sampling Time:
5 minutes at 500 lpm

Liquid Sample Size:
Higher precision: 5 to 6 ml

User Interface:
Multiple LED arrays

Battery Charge Indication:
Yes

Cross-Contamination:
None

Decontamination:
100%

Warranty:
Yes

Extended Warranty Available:
Yes

Availability:
Q3 2020

BioCapture® 650

Flow Rate:
200 lpm

Max Flow Mode:
n/a

Battery Life:
2 hours

User Selected Sampling Times:
Yes; 5, 15, 30 minutes

Max Flow Mode Sampling Time:
n/a

Liquid Sample Size:
Variable: 2 to 7 ml

User Interface:
LCD and LED

Battery Charge Indication:
Yes

Cross-Contamination:
None

Decontamination:
100%

Warranty:
Expired

Extended Warranty Available:
n/a

Availability:
Pending expiration

BioCapture® 550

Flow Rate:
150 lpm

Max Flow Mode:
n/a

Battery Life:
1 hour

User Selected Sampling Times:
No

Max Flow Mode Sampling Time:
n/a

Liquid Sample Size:
Variable: 2 to 5 ml

User Interface:
LED

Battery Charge Indication:
No

Cross-Contamination:
~1% carryover

Decontamination:
<100%

Warranty:
Expired

Extended Warranty Available:
No

Availability:
No
